Photos:
KL-22x60 Mill
KL-18x48 Mill
KL-16x42 Mill(Left drive)
Construction and Features:
1. Base: One piece construction of welded steel plate or cast iron
provides maximum stability.
2. BUSHING: The bearing type bushing is constructed of cast steel
housing and high strength bearing at inside diameter.
3. BUSHING LUBRICATION: Employs automatic circulated
lubrication system.

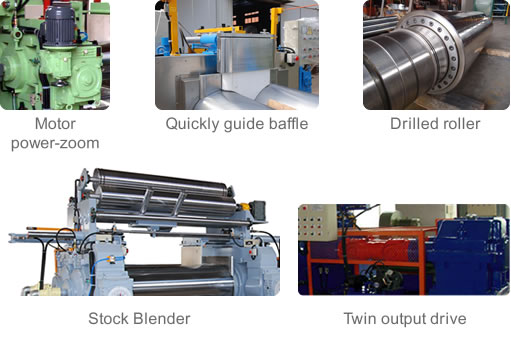

Optional:
Specifications:
| 规格尺寸
(Ø×L) Size of rolls |
12”×30” | 14”×36” | 16”×42” | 18”×48” | 22”×60” | 24”×72” | 26”×84” |
主动电机功率 |
22 KW | 30 KW | 45 KW | 75 KW | 110 KW | 160 KW | 220 KW |
机械重量 |
5000 kg | 6000 kg | 8000 kg | 12500 kg | 18500 kg | 26500 kg | 32000 kg |
机械尺寸 |
3400×1300 ×1500 |
4120×1430 ×1960 |
4500×1550 ×1900 |
5100×1750 ×2150 |
5300×2000 ×1600 |
6200×2450 ×2200 |
6600×2550 ×2300 |
